Home > PA System > Indoor Speaker > Ceiling Speaker > CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers

CA226 High Quality Coaxial Ceiling speaker 20W

SKU:
5.0 (1)
1 Sold
  • High-quality Sound: The speaker delivers professional sound quality with a frequency range of 60Hz-18kHz.In the coaxial speaker unit, the tweeter can be rotated approximately 15° in all directions. Ensuring a natural, clear and crisp audio experience for any event or setting, ensuring a powerful and immersive audio experience.
  • Versatile Applications: The outdoor and concert-ready PA system is designed for a variety of applications, making it suitable for both indoor and outdoor events such as concerts, parties, and public addresses.
  • Robust Construction: The speaker is built with a ABS shell, providing durability and protection against potential damage, making it ideal for frequent use in various environments.
  • Easy Connection: The speaker features a simple electric wire connection type, allowing for quick and hassle-free setup. It also comes with 1-year warranty, providing peace of mind for customers.
  • Customization Options Available: As an OEM service provider, we can work with you to tailor the product to your specific needs and preferences, including color, design, and other custom requirements (user input).
  • Compliant with Safety Standards: Ensuring compliance with European safety standards, providing peace of mind for users in the EU and other regions.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Quantities:
    1-499 Pcs
    500+Pcs
Quantity:
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
1/1
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • CA226 Ceiling speaker system 20W Best Roof In wall ceiling loudspeaker ceiling sound system coaxial speakers
  • Description
Specifications
Model CA226
Rated power 20W
Peak power  40W
Frequency response 60Hz-18kHz
Sensitivity 88±2dB
Maximum Sound Pressure Level 101±2dB
Speaker unit 6.5" speaker *1, 1" speaker *1(coaxial )
Hole cutout size 194-200mm/7.64Inch-7.87Inch
Product overall size 228mm/8.98Inch
Product mounting depth 95mm/3.74Inch

Installation Steps:

Step1: Cut the Speaker Hole to 194-200mm/7.64Inch-7.87Inch.

Step2: Wire the Speaker.  (Black wire: positive pole       Red wire: negative pole)
Input 70v 100v
Red-Black 20w 40w

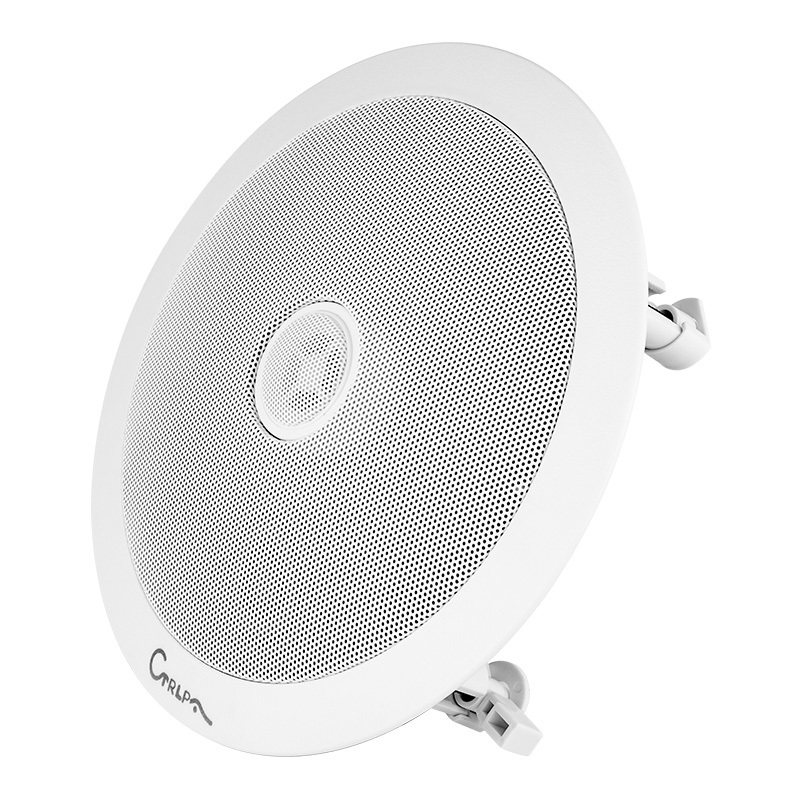

Step3: Flip up the spring clips on both sides of the speaker and insert them into the mounting holes. Then release your hand and gently push the speaker to embed it into the ceiling (see the figure below). To avoid being injured by the spring clips, it is recommended to wear work gloves when performing this operation.
